Removing the Rocker Panel Cover
1 - Open the door and remove the rear plastic plate
2 - Remove center plastic plate
3 - Remove front plastic plate
4 - Drill out ALL metal rivets located under the 3 plates removed above
5 - With the help of a nail, punch out the center pin on all 7 plastic rivets located on the under part of the rocker panel cover
6 - Remove the 7 plastic rivets
7 - Remove the screws inside the front and rear wheel well (one screw at each end of the cover)
8 - Insert a flat head screw driver between the cover and the front fender to unlatch 1 clip. Pull the cover outwards
9 - Insert a flat head screw driver between the cover and the rear fender to unlatch 3 clips. Pull the cover outwards

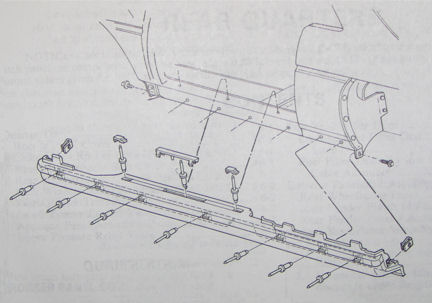

Schematic:
